SZL Biomasse Dampf-/Heißwasserkessel

SZL Biomass Steam/Hot Water BoilerCapacity: 2t/h-40t/h（2.8-28MW ）Steam Pressure:

Seitenaufrufe： ℃

Aktualisierungszeit：2026-05-19 21:34

Online-Beratung

SZL Biomasse Dampf-/Heißwasserkessel

SZL Biomass Steam/Hot Water Boiler

Capacity: 2t/h-40t/h（2.8-28MW ）

Steam Pressure: 0.7Mpa-3.8Mpa

Certificate: CE, SGS, BV, ISO9001, CCC, etc.

Fuel: Coal/wood pellet/rice husk/ peat pellet/biomass

Quick Details

SZL Biomass Steam or Hot Water Boiler Introduction

SZL biomass fired chain grate steam boiler is horizontal type water tube boiler, the combustion equipment is chain grate. The boiler adopts fast assembly or packaged assembly structure, boiler with steam capacity lower than 4t/h is fast assembly water tube structure, boiler with steam capacity between 6~25t/h is consisted of upper part (boiler heated part) and lower part (combustion equipment). The boiler is equipped with water-cooled walls, a steam-water separator, a blowdown system, and an economizer. This series of boilers has reached international advanced levels in terms of technology, performance, and environmental protection.

Applications: Foods, Garment, Textile, Paper, Brewery, Ricemill, Printing & Dyeing, Poultry feed, Sugar, Packaging, Plywood, Building material, Chemical, etc.

Auxiliary

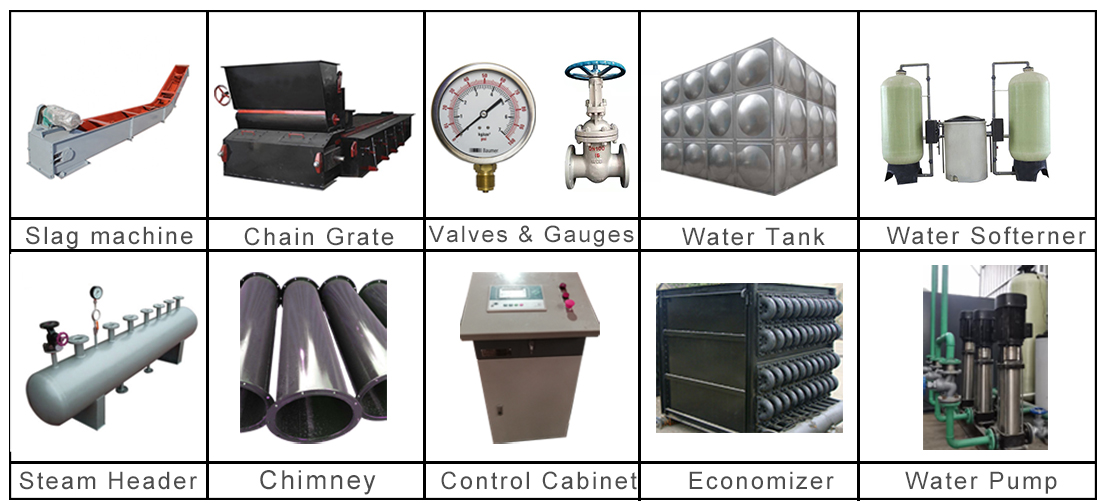

Whole SZL series biomass boiler system includes grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc.

Parameters

SZL Series Biomass Fired Steam Boiler:

Model	Rated Steam Capacity (t/h)	Working Pressure (MPa)	Thermal Efficiency (%)	Overall Dimension L×W×H (m)	Weight (t)
SZL2-1.25/1.6/2.5	2	1.25/1.6/2.5	81	5.8×2.35×3.5	25
SZL4-1.25/1.6/2.5	4	1.25/1.6/2.5	81	7.8×2.4×3.6	32
SZL6-1.25/1.6/2.5	6	1.25/1.6/2.5	81	8×3×4.87	43
SZL8-1.25/1.6/2.5	8	1.25/1.6/2.5	81	8.1×3.2×5.7	63
SZL10-1.25/1.6/2.5	10	1.25/1.6/2.5	81	8.2×3.5×5.7	87
SZL12-1.25/1.6/2.5	12	1.25/1.6/2.5	81	10.6×3.6×5.7	100
SZL15-1.25/1.6/2.5	15	1.25/1.6/2.5	82	12.5×3.7×5.8	105
SZL20-1.25/1.6/2.5	20	1.25/1.6/2.5	82	13.8×4.2×5.8	140
SZL25-1.25/1.6/2.5	25	1.25/1.6/2.5	82	15.6×5×6.135	170
SZL30-1.25/1.6/2.5	30	1.25/1.6/2.5	82	17.7×8.5×9.5	210
Note:1.Parameter is for reference only, if any changes should follow the factory technical data. 2. Our company can design boiler products based on customers’ requirement and different biomass fuels.

SZL Series Biomass Fired Hot Water boiler:

Model	Rated Power (MW)	Working pressure (Mpa)	Supply water temperature (℃)	Return water temperature (℃）	Thermal efficiency (%）
SZL1.4-0.7/95/70	1.4	0.7	95	70	80
SZL2.8-0.7/95/70	2.8	0.7	95	70	80
SZL4.2-1.0/95/70	4.2	1	95	70	80
SZL5.6-1.0/95/70	5.6	1	95	70	80
SZL7-1.0/95/70	7	1	95	70	80
SZL10.5-1.0/115/70	10.5	1	115	70	80
SZL14-1.0/115/70	14	1	115	70	80
Note: 1.Parameter is for reference only, if any changes should follow the factory technical data. 2. Our company can design boiler products based on customers’ requirement and different biomass fuels.
